Gearbox Planetary Carriage Product

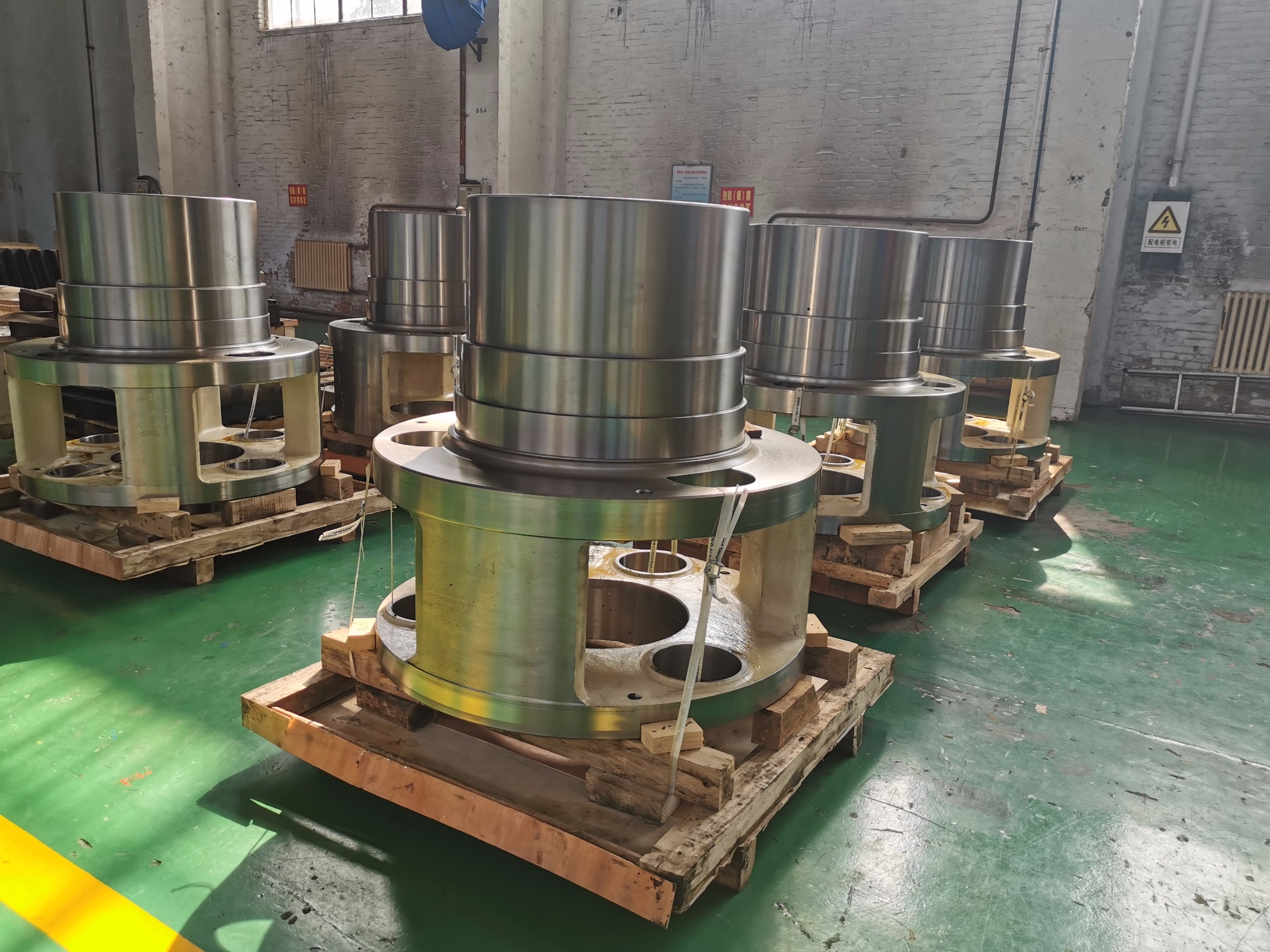

1.Planetary Revolving Frame of Vertical Reducer of Cement Vertical Mill -1

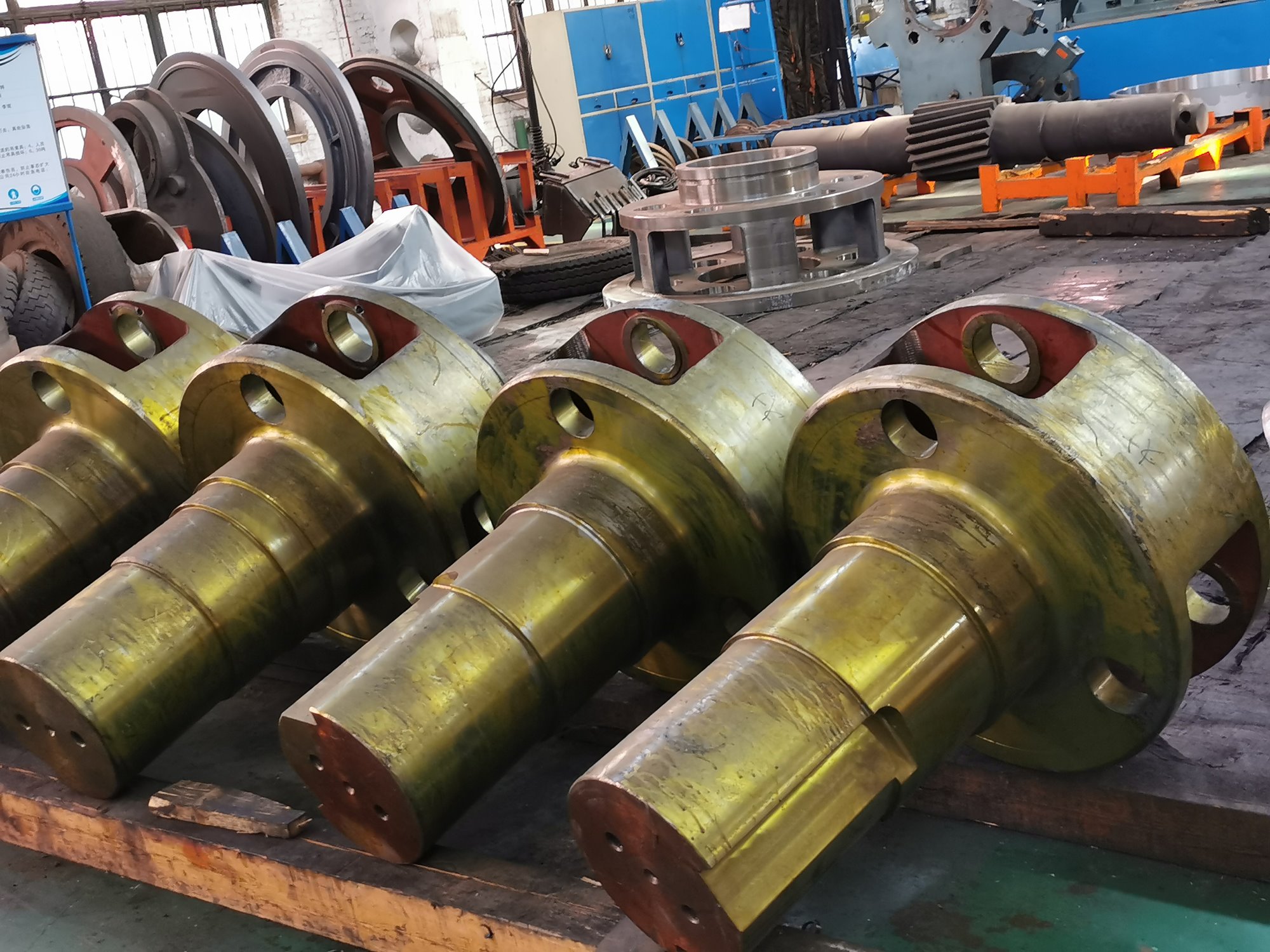

2.Planetary Rotary Frame of Mine Mill Reducer1 3.Planetary Rotary Frame of Mine Mill Reducer2

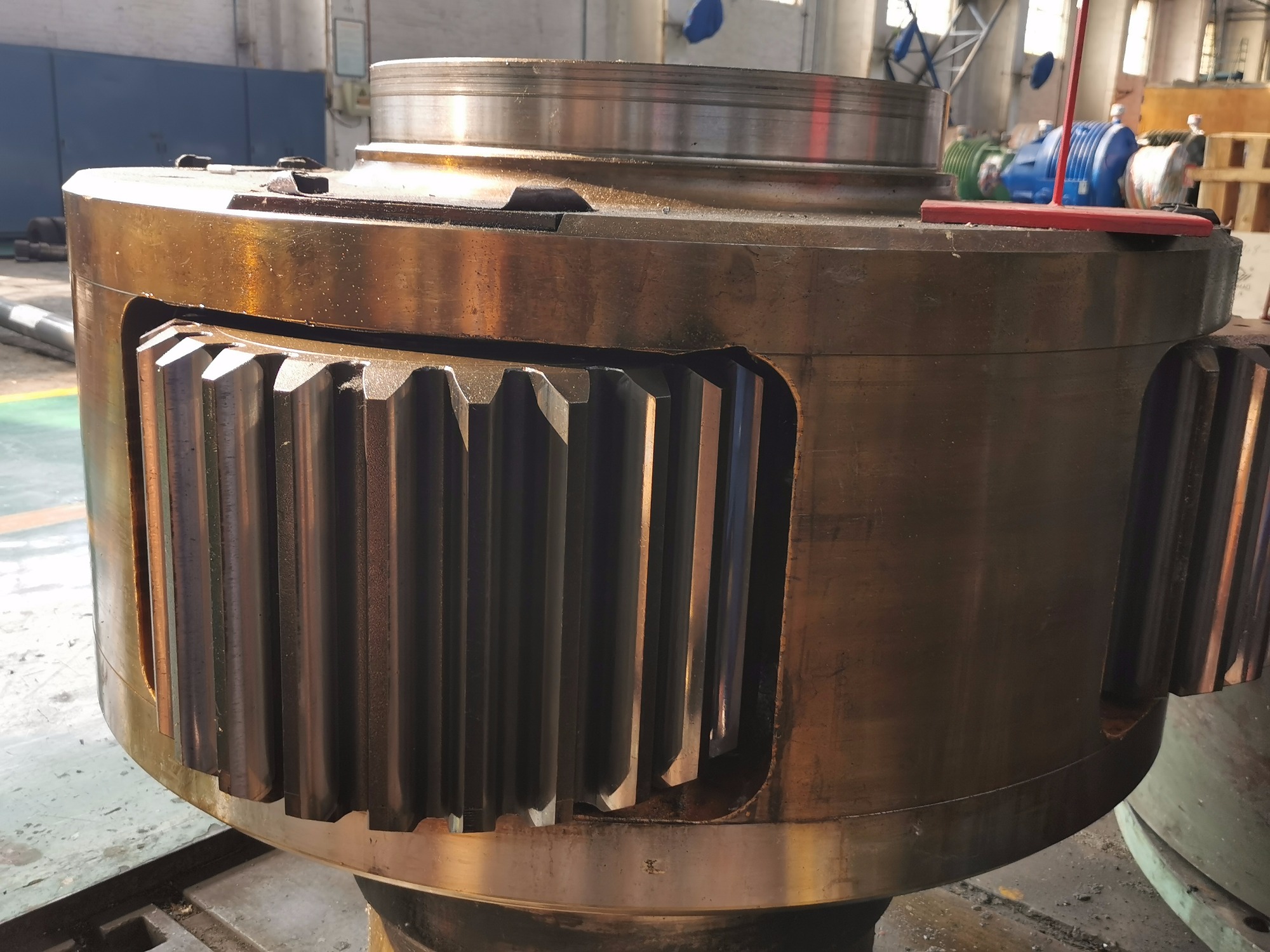

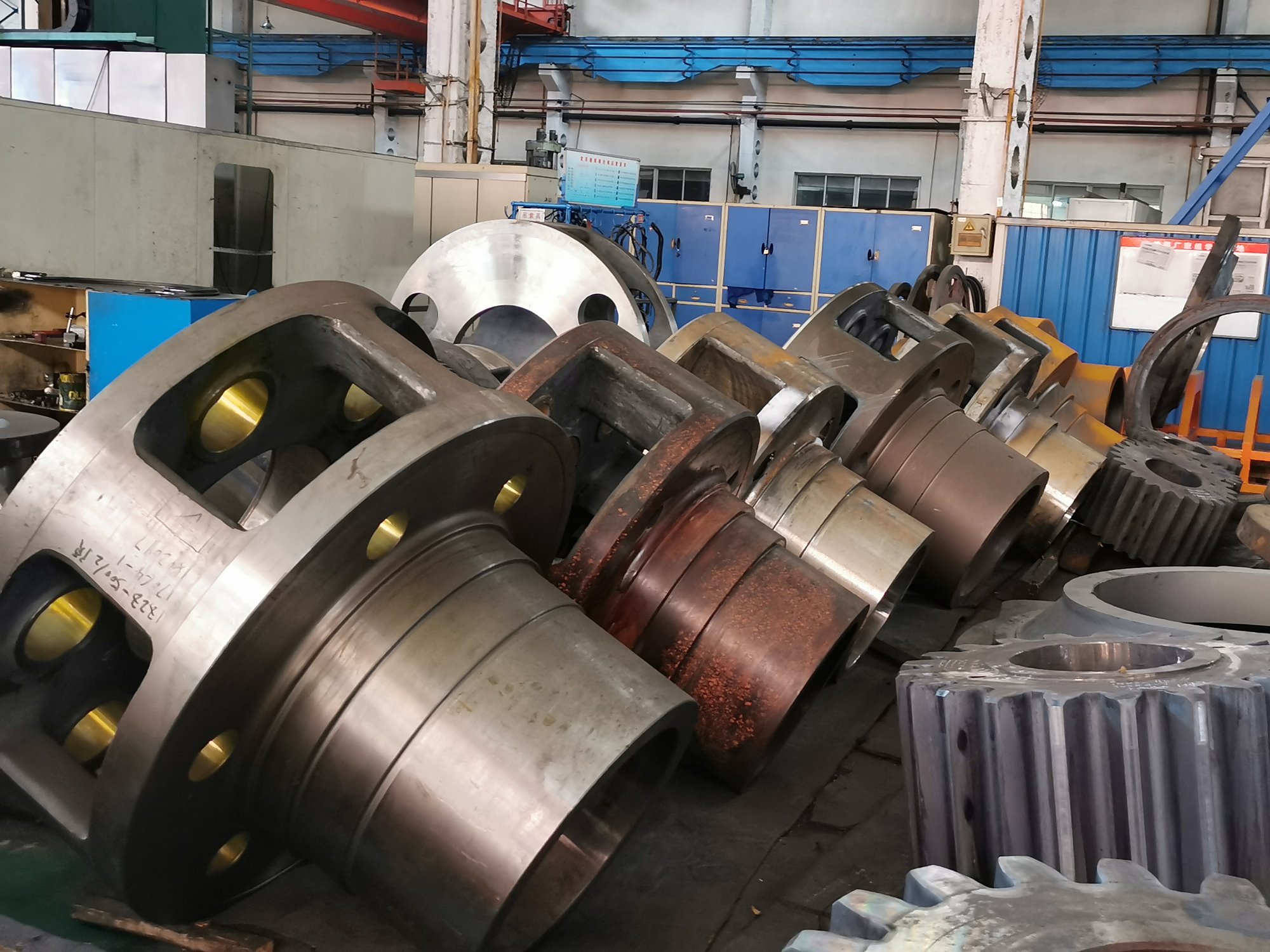

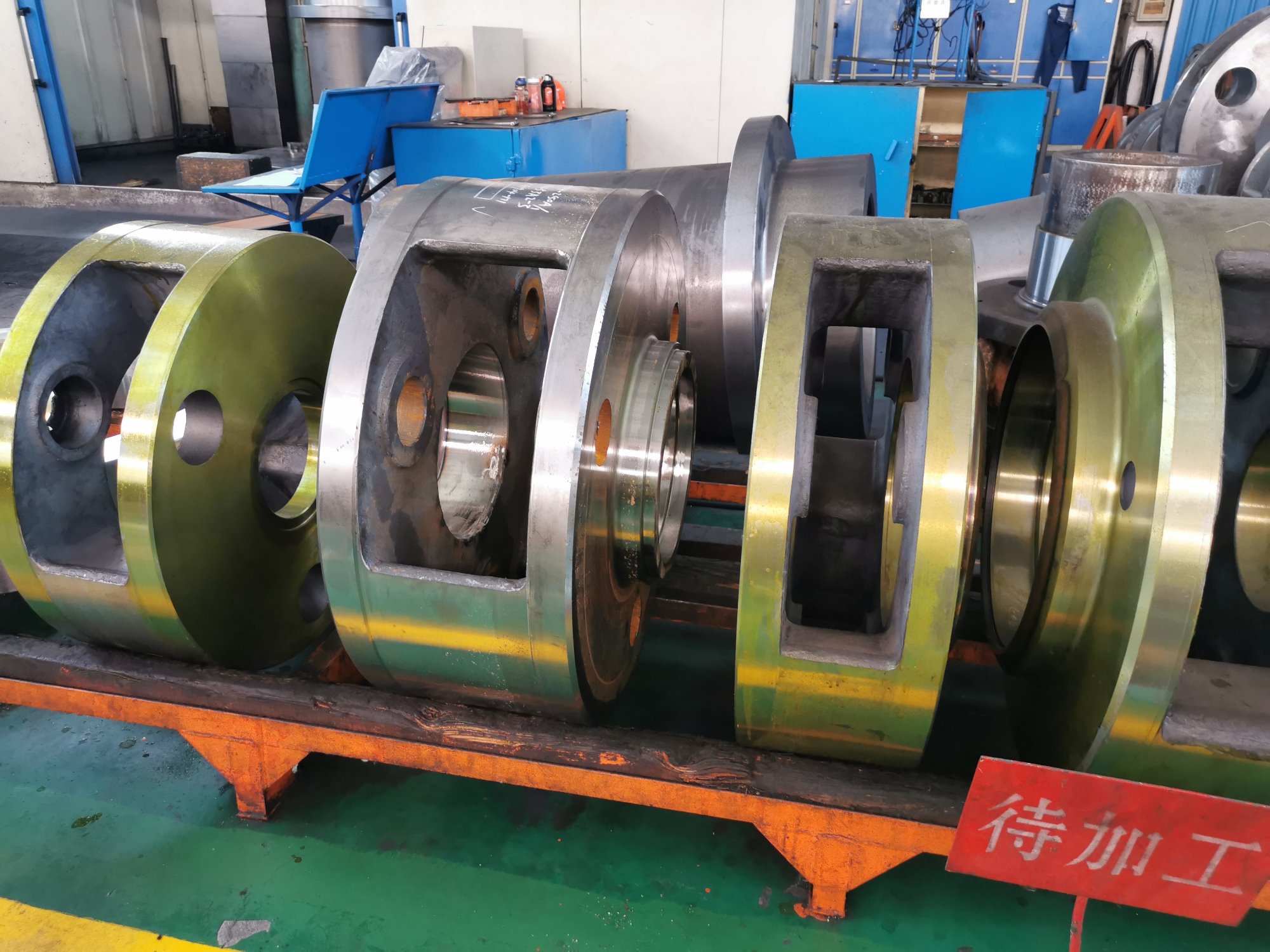

4.Planetary Rotary Frame of Mine Mill Reducer1 5.Planetary Gear Assembly 6.Planetary Revolving Frame of Vertical Reducer of Cement Vertical Mill -2

■ Chemical Constituents of Planetary Carriage  Table 1
C Si Mn S P Ni Mo Cr
0.28-0.32 0.3-0.5 0.65-0.80 ≤0.015 ≤0.020 1.6-1.8 0.3-0.4 1.00-1.2

■ Mechanical properties of  Planetary Carriage  Table 2
Yield Strength /Mpa Tensile Strength
/Mpa
Section Shrinkage
/%
Impact Toughness
/J
≥950 1050-1200 ≥12 35

■ Planetary Carriage Manufacturing Process
Casting Rough→Roughing→Nondestructive Ttesting→Quenching and Tempering→Finish Machining
