Vertical Stirred Mill Screw Liner

Home / Mining Liners / Vertical Stirred Mill Screw Liner

PARAMETERS

Hengin's Vertical Stirred Mill Screw Liner is mainly OEM Mesto's Vertimill® series, CITIC'S CSM series and the largest stirred mill is CSM-1200. The liner is made of high chromium cast iron, with high hardness and good wear resistance.

■ Vertical Stirred Mill Screw Liner Material ：ASTM A532 ClassⅡ Grade E/M

C%	Cr%	Cu+Ni%	Mn%	Mo%	Si%	P%	S%
2.45-3.0	18-23	≤1.2	0.5-1.5	1.0-2.0	0.6-1.0	≤0.05	≤0.05

■ Model of Main Vertical Stirred Mill

Models	CSM250	CSM800	CSM1000	CSM1200	CSM1600	CSM2000	CSM2500	CSM3000	CSM3750	CSM4500
Power/KW	250	800	1000	1200	1600	2000	2500	3000	3750	4500

■ Weight:500-3000Kg
■ Liners Hardness:HRC 58-64
■ Metallography:Martensite + Retained Austenite

Process

1Vertical Stirred Mill Screw Liner Technical Specification 2Vertical Stirred Mill Screw Liner Design 3Vertical Stirred Mill Screw Liner model 4Vertical Stirred Mill Screw Liner Heat treatment

1Stirred Mill Liner Technical Specification

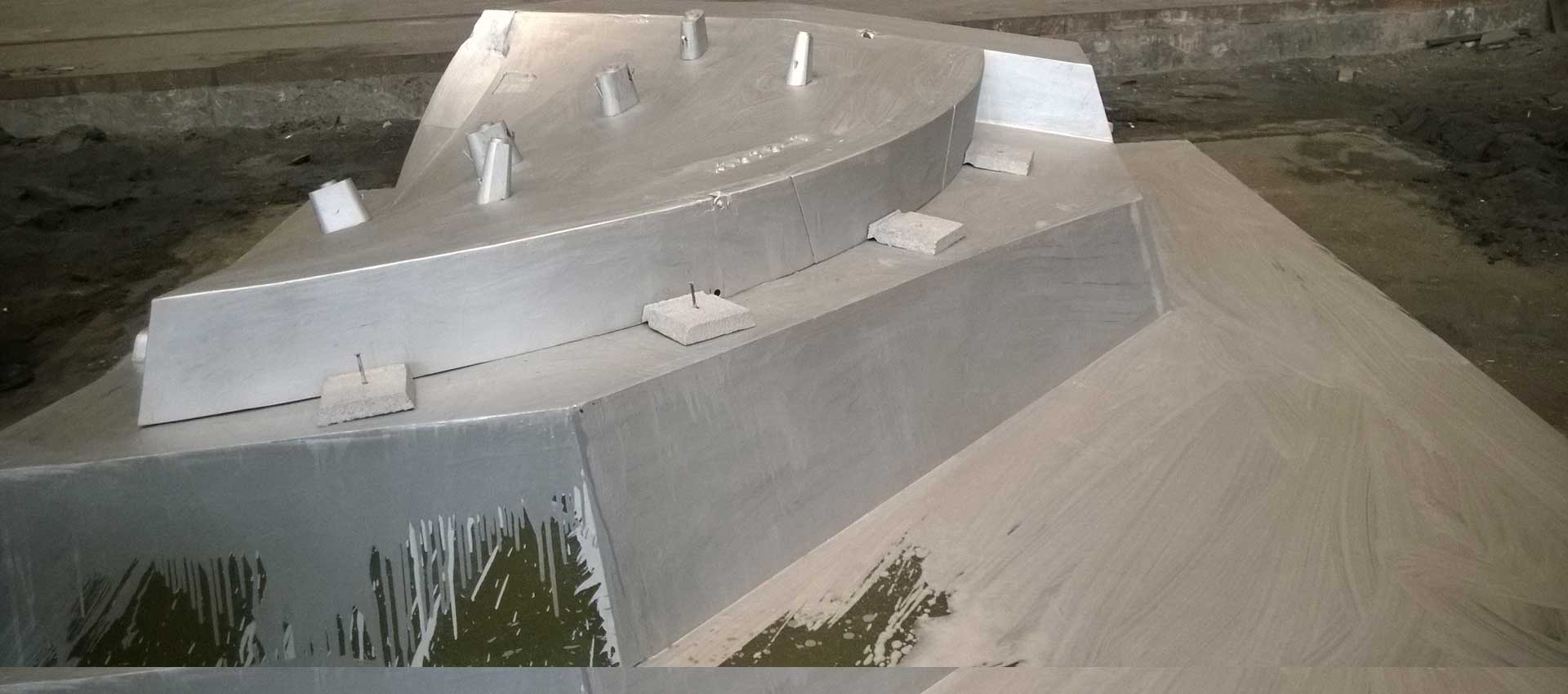

1Stirred Mill Liners Design

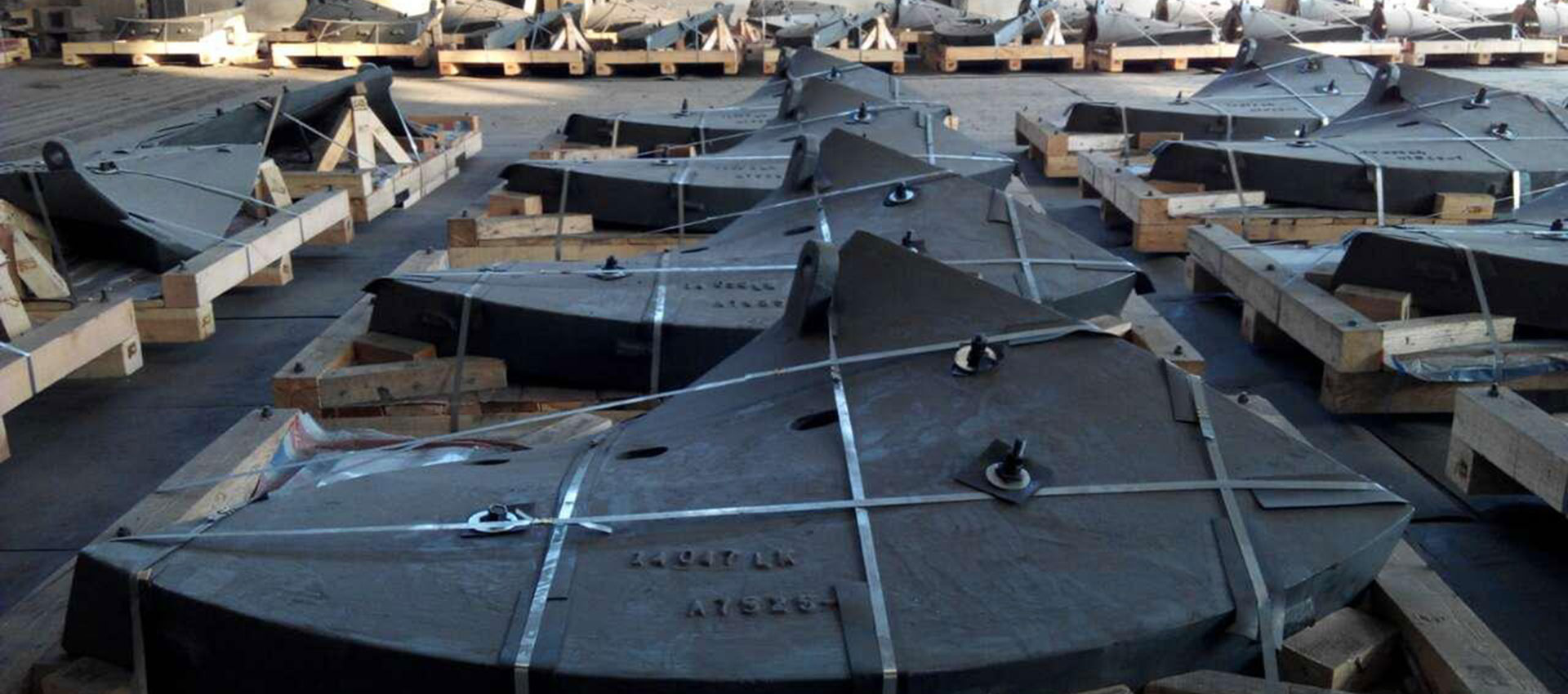

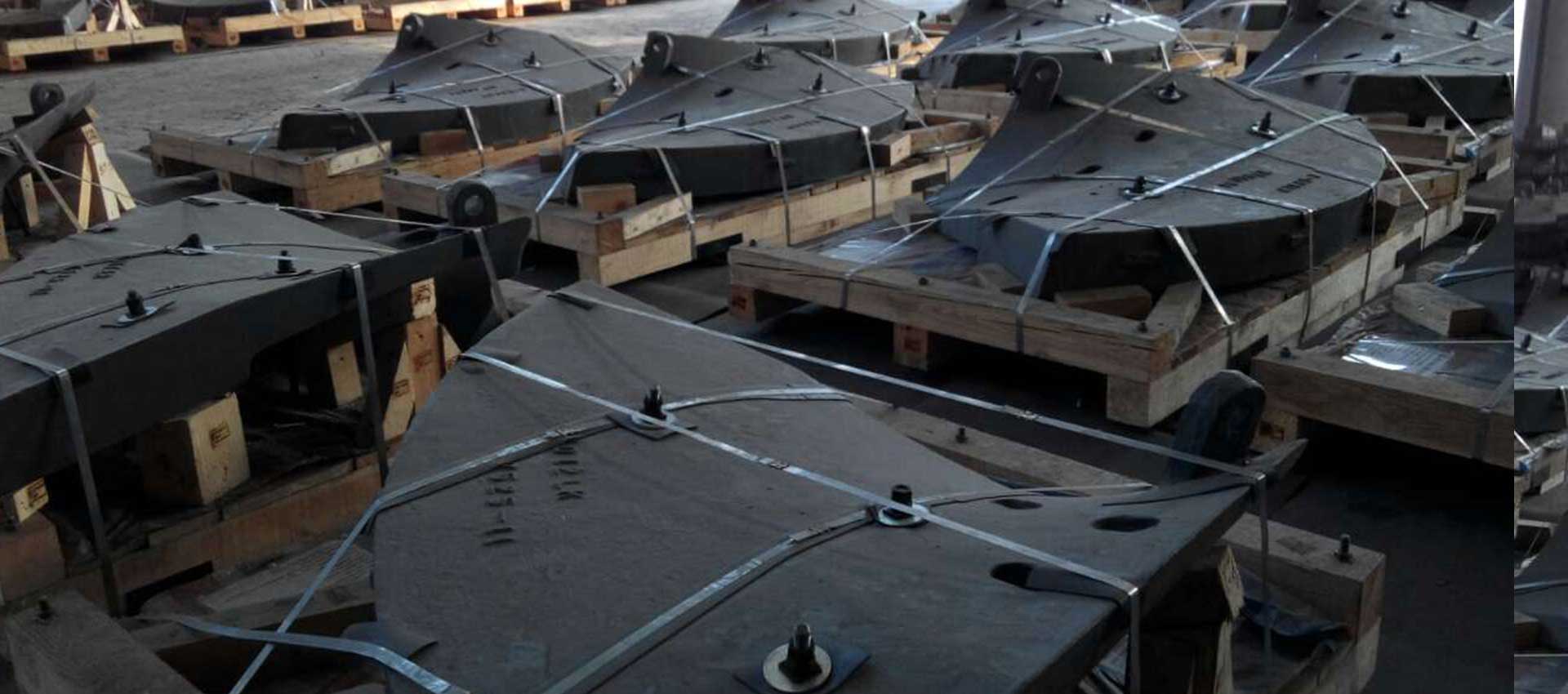

1Stirred Mill Liner Model

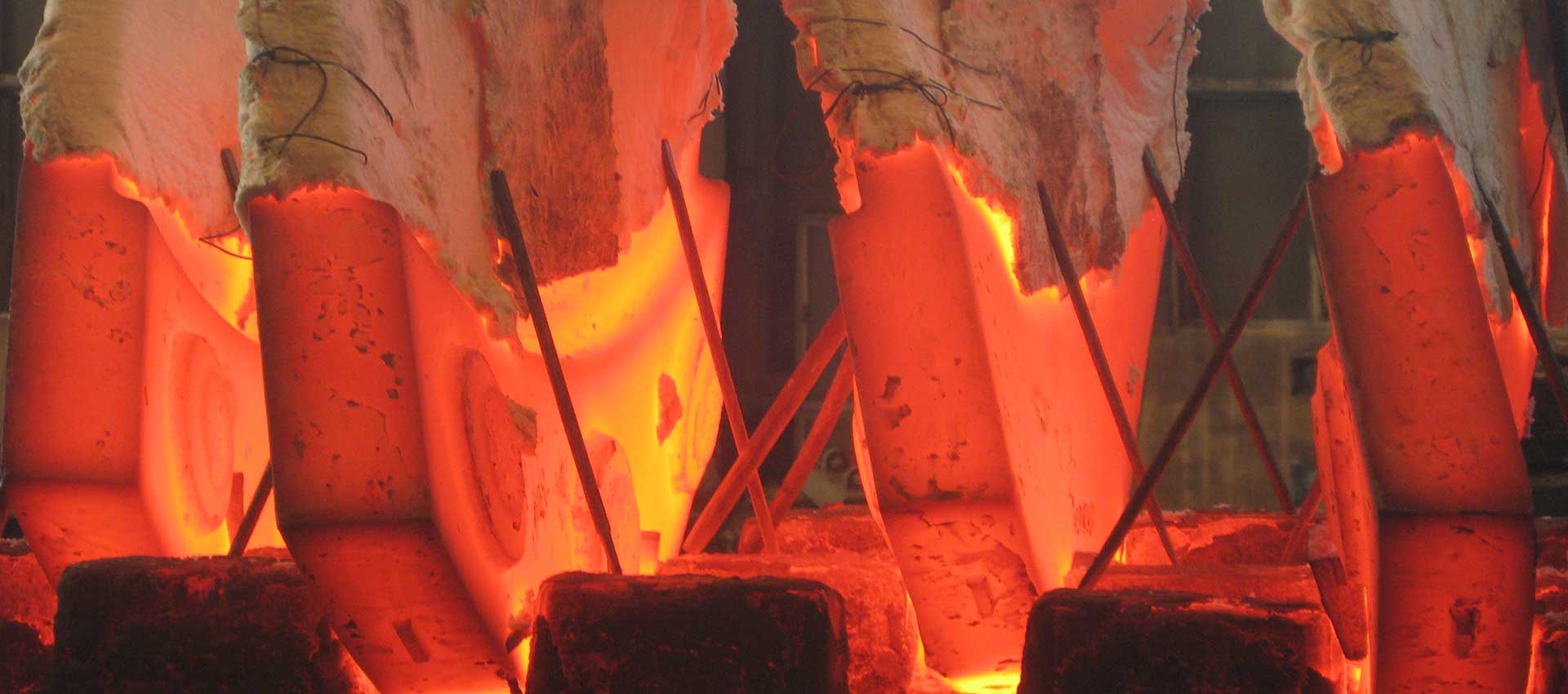

1Stirred Mill Liner Heat Treatment

Leave Us a Message

■ Vertical Stirred Mill Screw Liner Material ：ASTM A532 ClassⅡ Grade E/M

■ Model of Main Vertical Stirred Mill

■ Weight:500-3000Kg ■ Liners Hardness:HRC 58-64 ■ Metallography:Martensite + Retained Austenite

■ Weight:500-3000Kg
■ Liners Hardness:HRC 58-64
■ Metallography:Martensite + Retained Austenite
