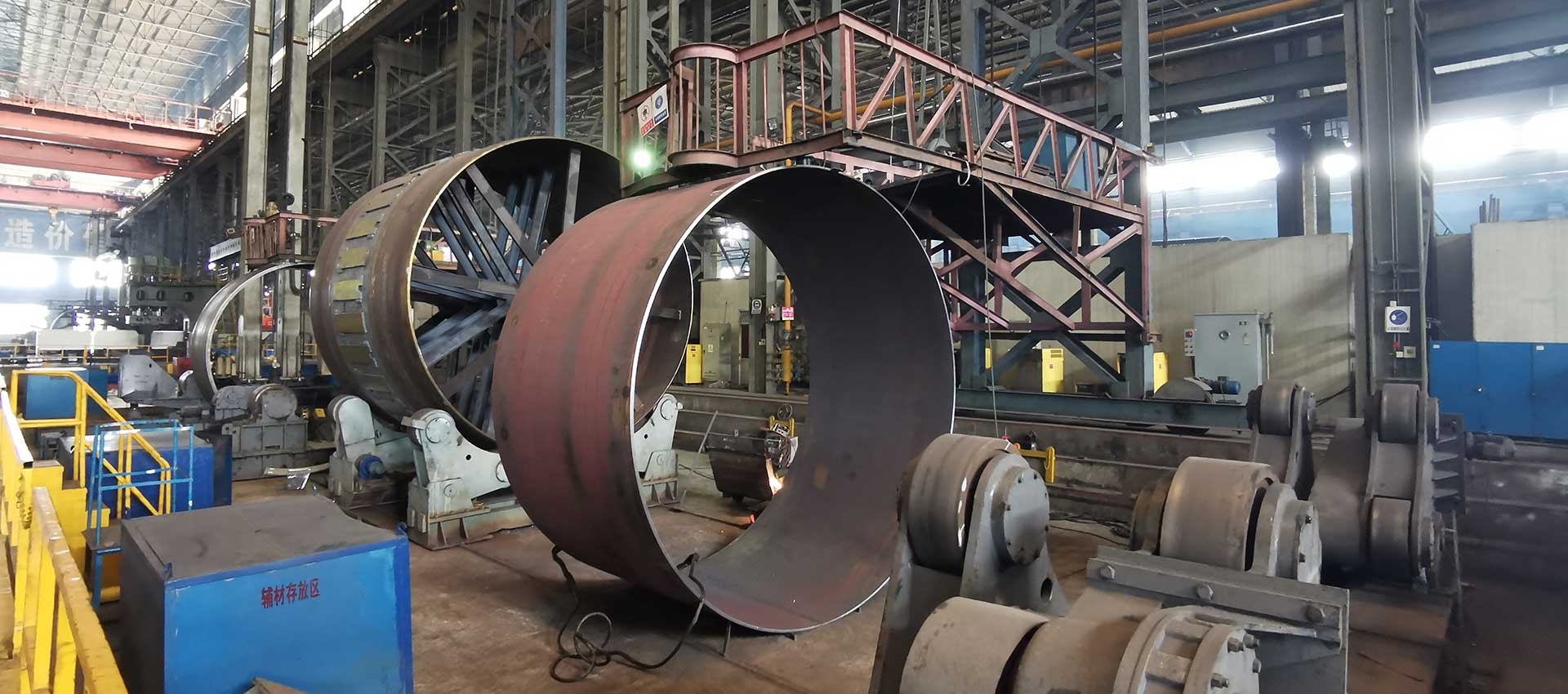

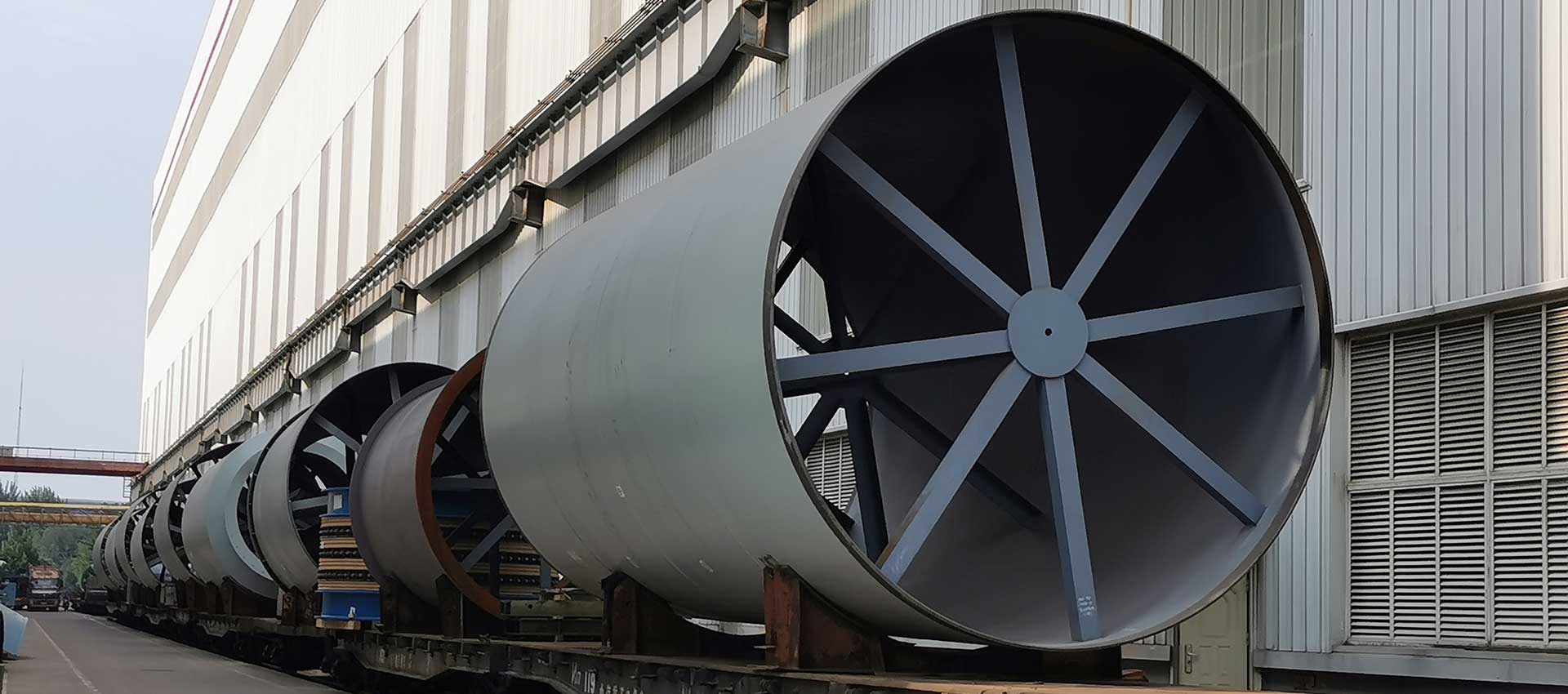

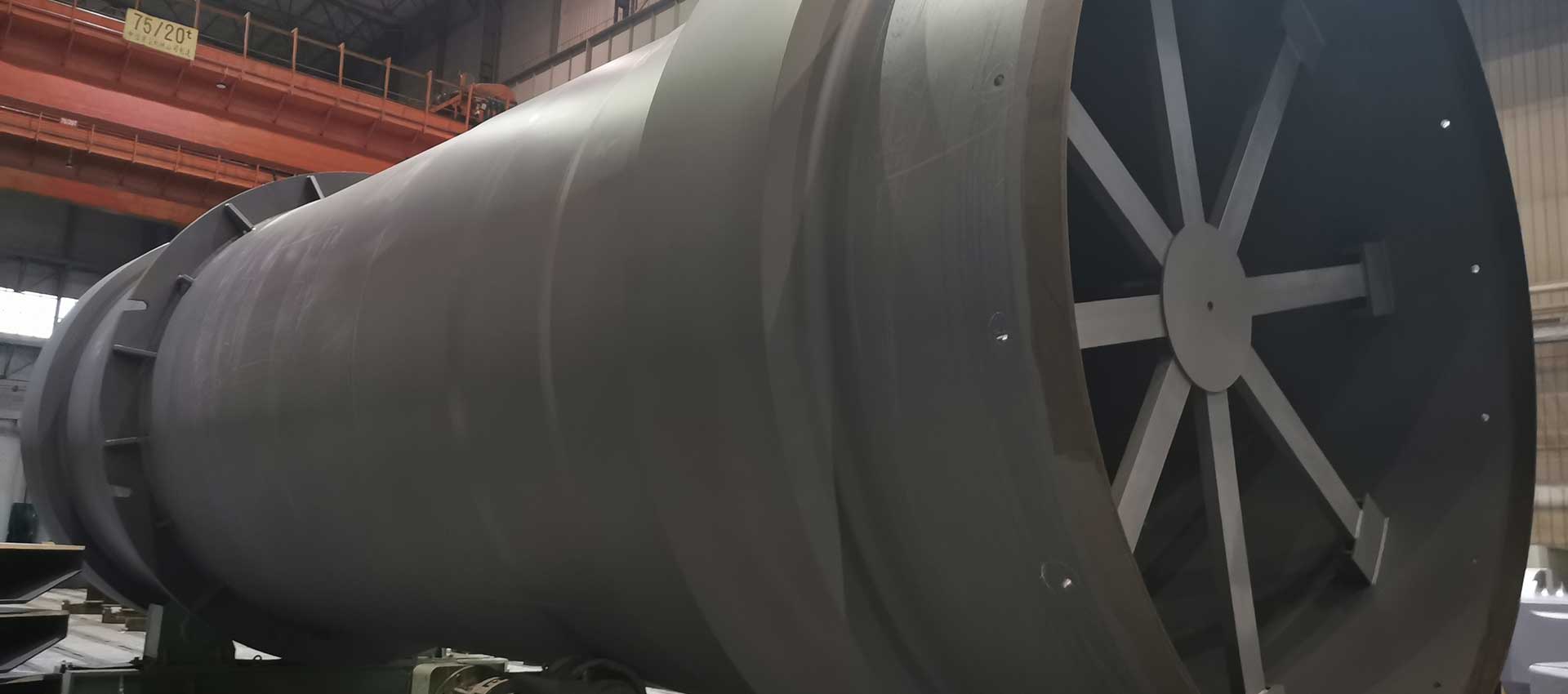

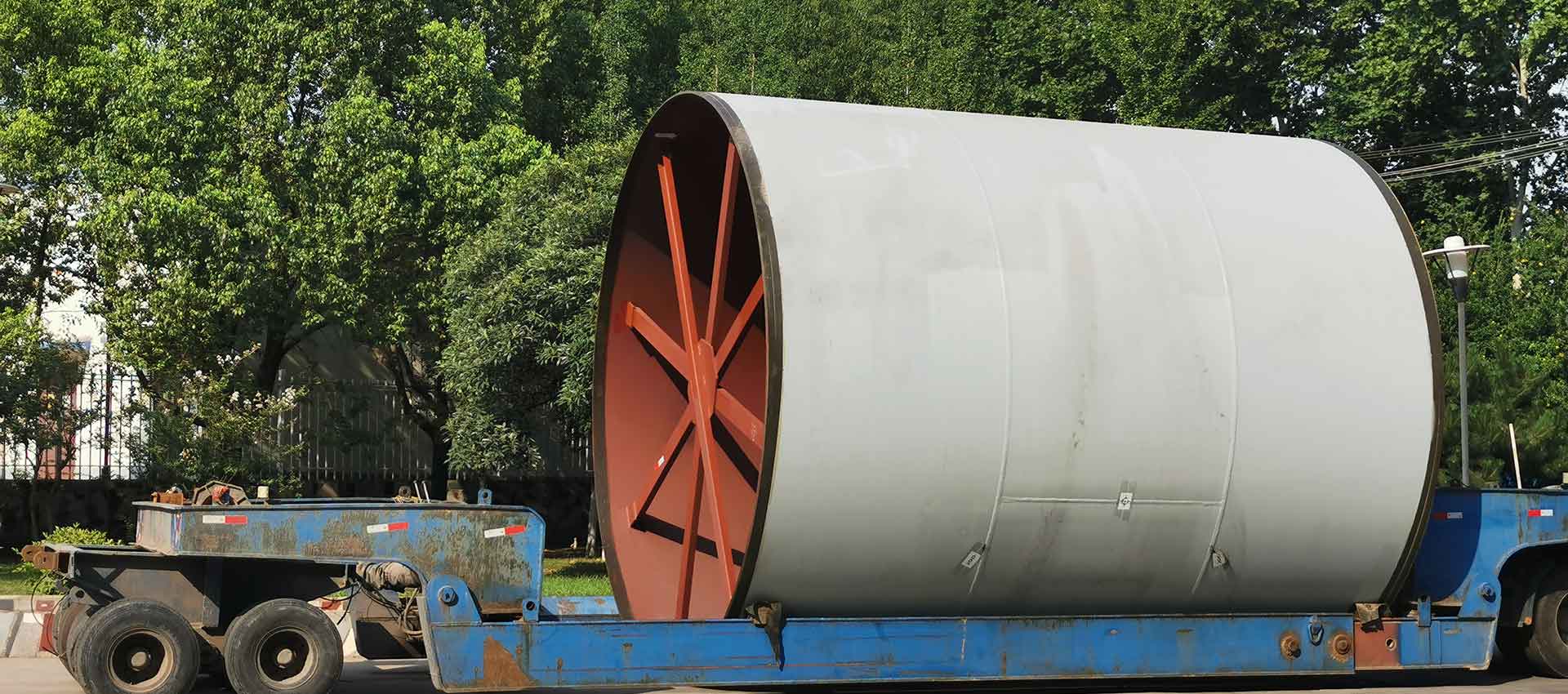

■ Rotary kiln shell components are important components of rotary kilns, especially large-scale rotary kilns, which have higher requirements for steel plate materials, coiling process, welding process and heat treatment.
■ Rotary kiln shell material: Q235B Steel Plate
■ Manufacturing process: blanking, coiling, welding, heat treatment, shot blasting, rust removal, painting, packaging.
■ Rotary kiln model specifications
|
Rotary kiln Specifications |
Rotary kiln Size |
Yield |
Rotating speed |
Motor Power |
Gross weight |
||
|
Diameter/m |
Length/m |
Slope/% |
|||||
| Φ2.5×40 |
2.5 |
40 |
3.5 |
180 |
0.44-2.44 |
55 |
149.6 |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 183.7 |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.2 |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 |
55 | 198.5 |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.44-2.18 | 55 | 201.6 |
| Φ3.0×45 | 3.0 | 45 | 3.5 | 500 | 0.5-2.47 |
75 | 210.9 |
| Φ3.0×48 | 3.0 | 48 | 3.5 | 700 | 0.6-3.48 |
100 | 237 |
| Φ3.0×60 | 3.0 | 60 | 3.5 | 300 | 0.3-2.0 | 100 | 310 |
| Φ3.2×50 | 3.2 | 50 | 4.0 | 1000 | 0.60-3.0 | 125 | 278 |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.27-2.66 | 125 | 283 |
| Φ3.5×54 | 3.5 |
54 | 3.5 | 1500 | 0.55-3.40 | 220 | 363 |
| Φ4.0×56 | 4.0 | 56 | 4.0 | 2300 | 0.41-4.07 |
315 | 456 |
| Φ4.0×60 | 4.0 | 60 | 3.5 | 2500 | 0.40-3.96 | 315 | 510 |
| Φ4.2×60 | 4.2 | 60 | 4.0 | 2750 | 0.4-3.98 | 375 | 633 |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.40-3.96 | 375 | 583 |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 |
| Φ4.7×74 | 4.7 | 74 | 4.0 | 4500 | 0.35-4.0 | 630 | 849 |
| Φ4.8×74 | 4.8 | 74 | 4.0 | 5000 | 0.40-3.96 | 630 | 899 |
| Φ5.0×74 | 5.0 | 74 | 4.0 | 6000 | 0.35-4.0 | 710 | 944 |
| Φ5.6×87 | 5.6 | 87 | 4.0 | 8000 | Max4.23 | 800 | 1265 |
| Φ6.0×95 | 6.0 | 95 | 4.0 | 10000 | Max5 | 950×2 | 1659 |
