Home / Mine Equipment&Spare Parts / Gyratory Crusher
PARAMETERS
■ Gyratory Hydraulic Crusher consists of the following four parts

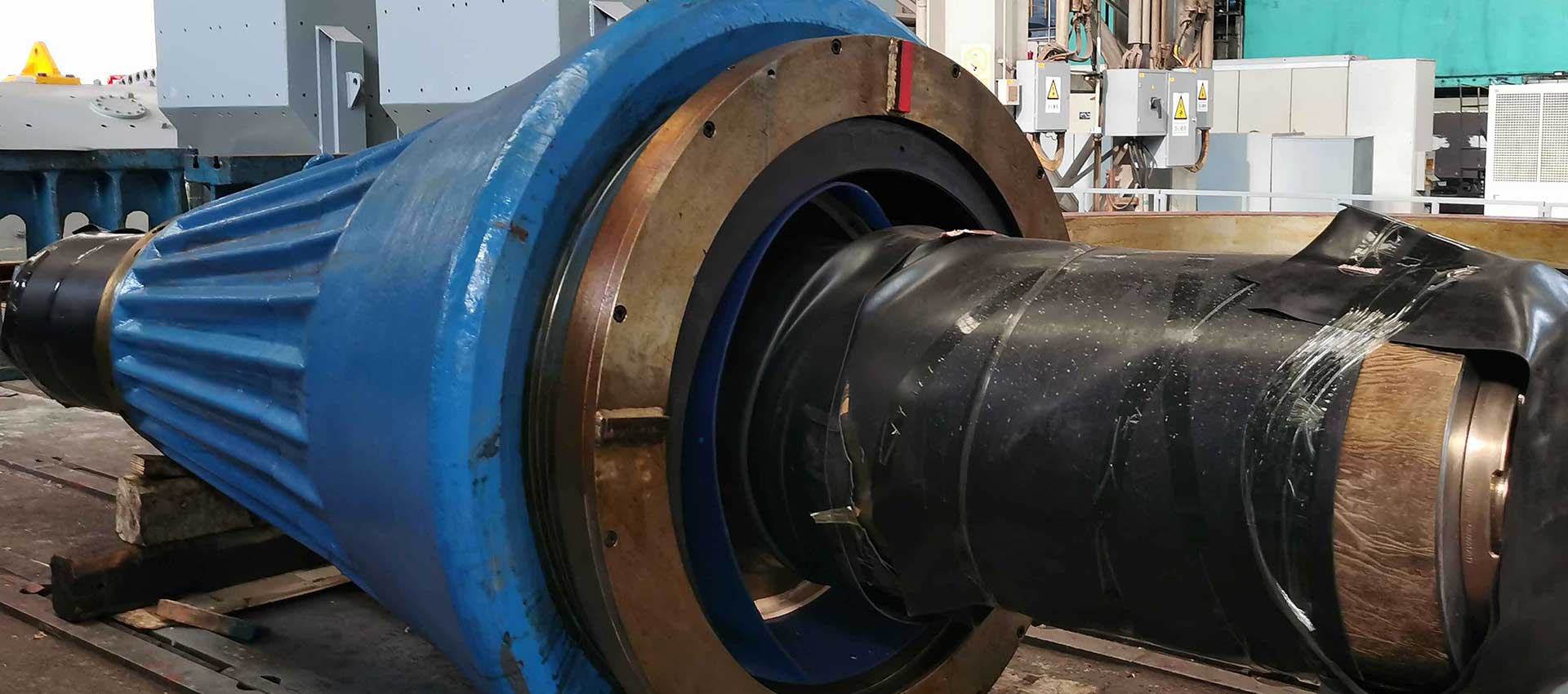

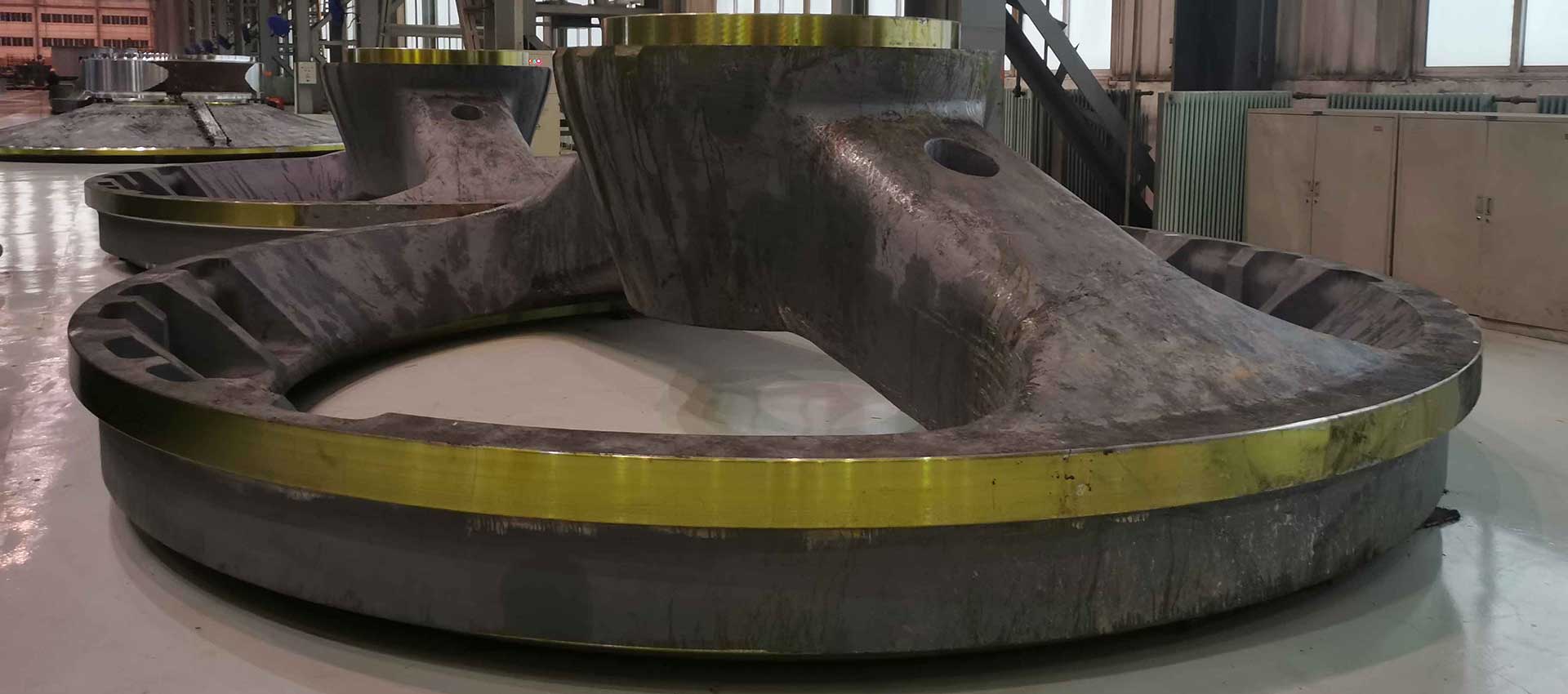

◆ The main mechanism of crusher is spider (with lining), intermediate shell (with lining, lower body), cone crushing assembly (with lining, eccentric sleeve, cylinder, drive), engine.
◆ Hydraulic lubrication component crusher includes lubrication and hydraulic system.
◆ Electric crusher system.
◆ Installation and maintenance of auxiliary components: including hydraulic lifting components, lubricating oil components, dust ventilator.


Model KW power
Max)
Quality/
t
Bock's Postcard size/mm Maximum. size
Power supply millimeter
Lower diametoi
Mm cone movable cylinder
Open rib of movable cone Throughput/tph
PXZ42-65 400 128 1100 900 1650 140-175 1800-2850
PXZ50-65 400 175 1270 1050 1650 150-175 2200-2950
PXZ54-78 650 256 1375 1180 1910 150-200 2620-3470
PXZ63-79 650 320 1600 1400 1910 150-200 2670-4325
PXZ60-89 800 400 1524 1300 2260 160-230 4200-5810
PXZ60-113 1200 600 1524 1300 2870 160-260 5430-10000
Process
