Mill Girth Gear Machining Process

                            Roughing stage
Blank marking  Rough milling joint  → Rough lathe processing
                      ■ Semi-finishing stage
Secondary line → Semi-finishing combined surface →  Semi-finishing lathe processing → Rough tooth
                      ■ Finishing stage
Finishing combined surface→ Fine lathe processing→ Fine hobbing

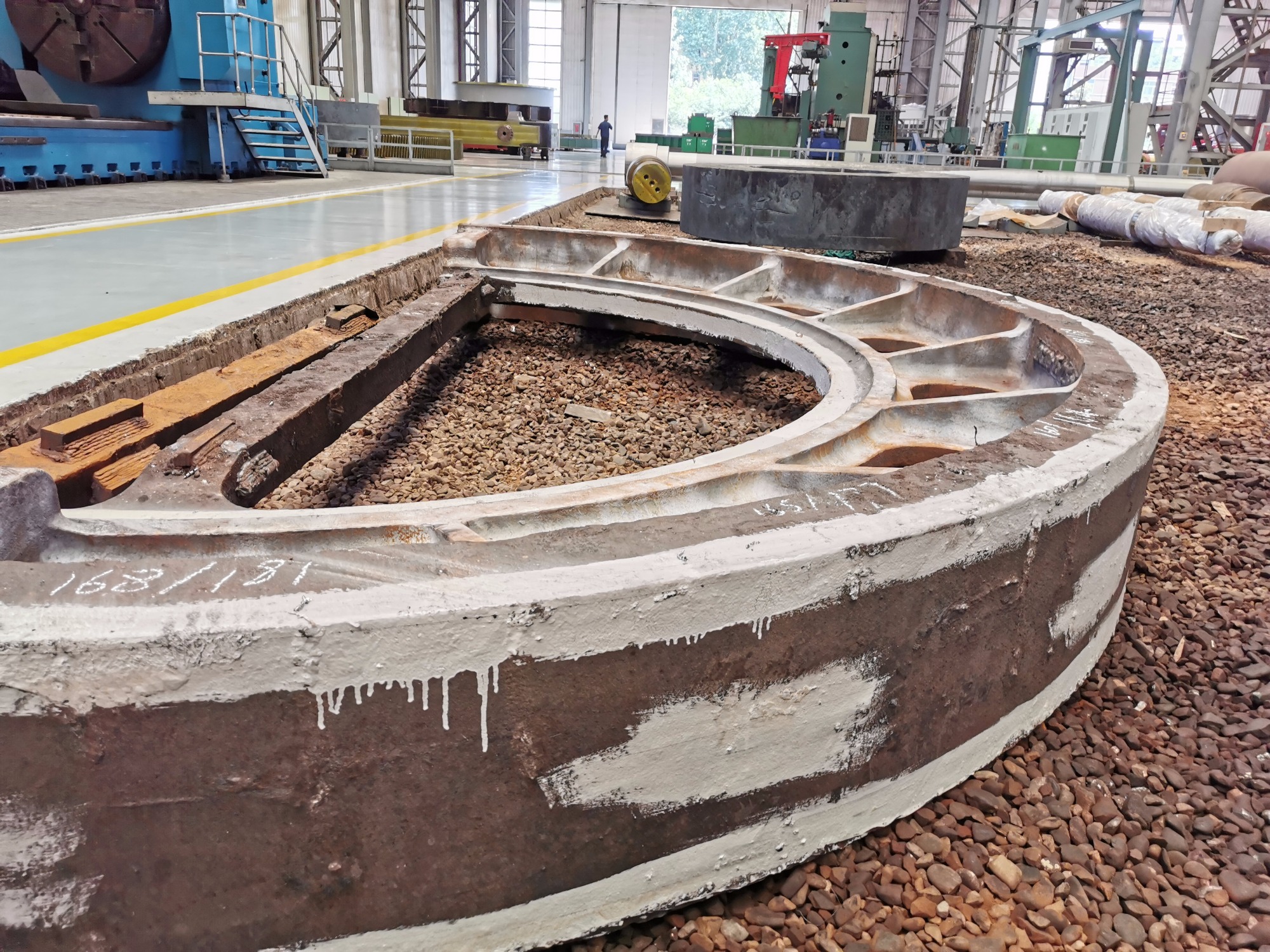

1.Rough machining-1

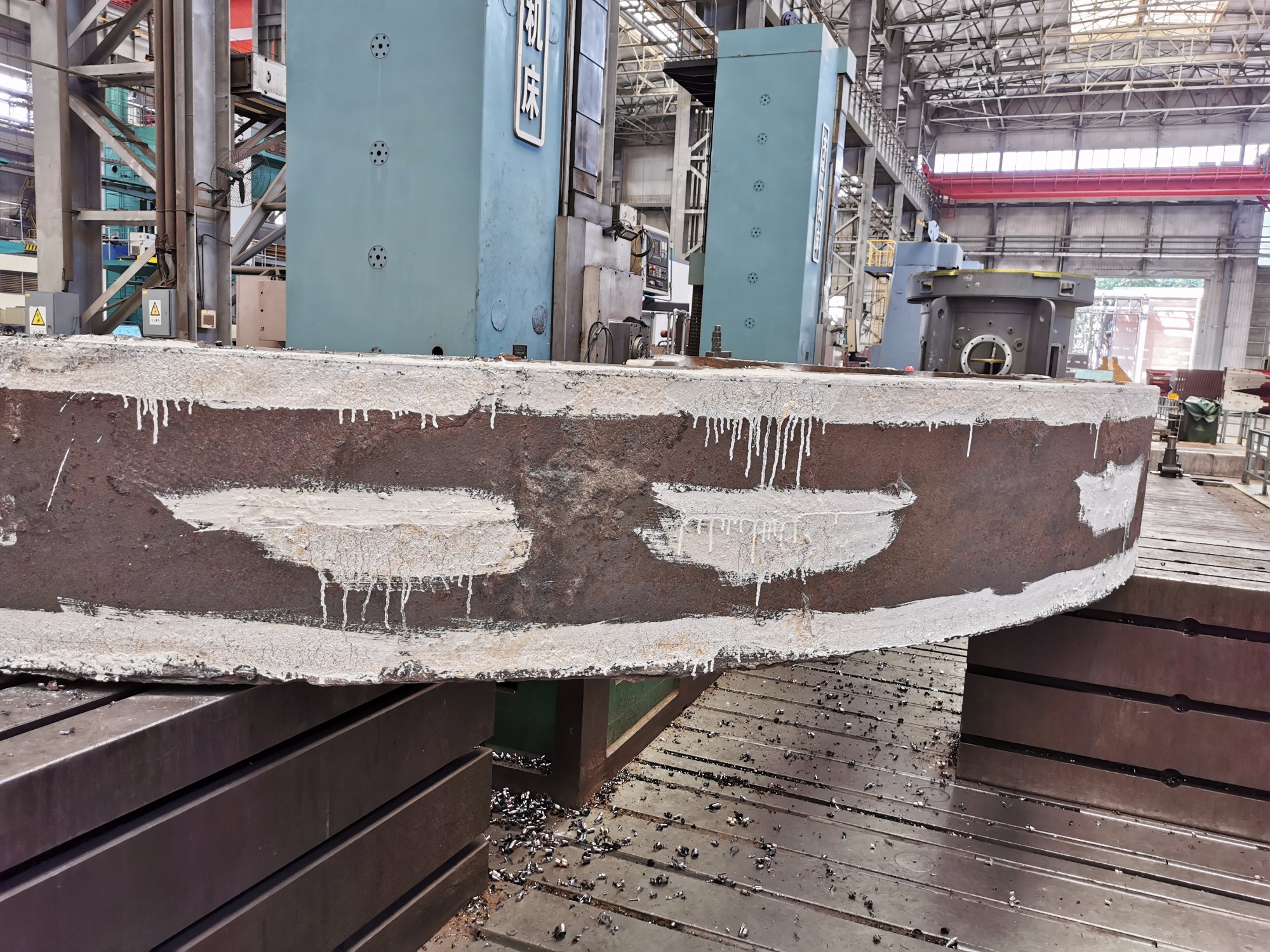

 2. Rough machining-2

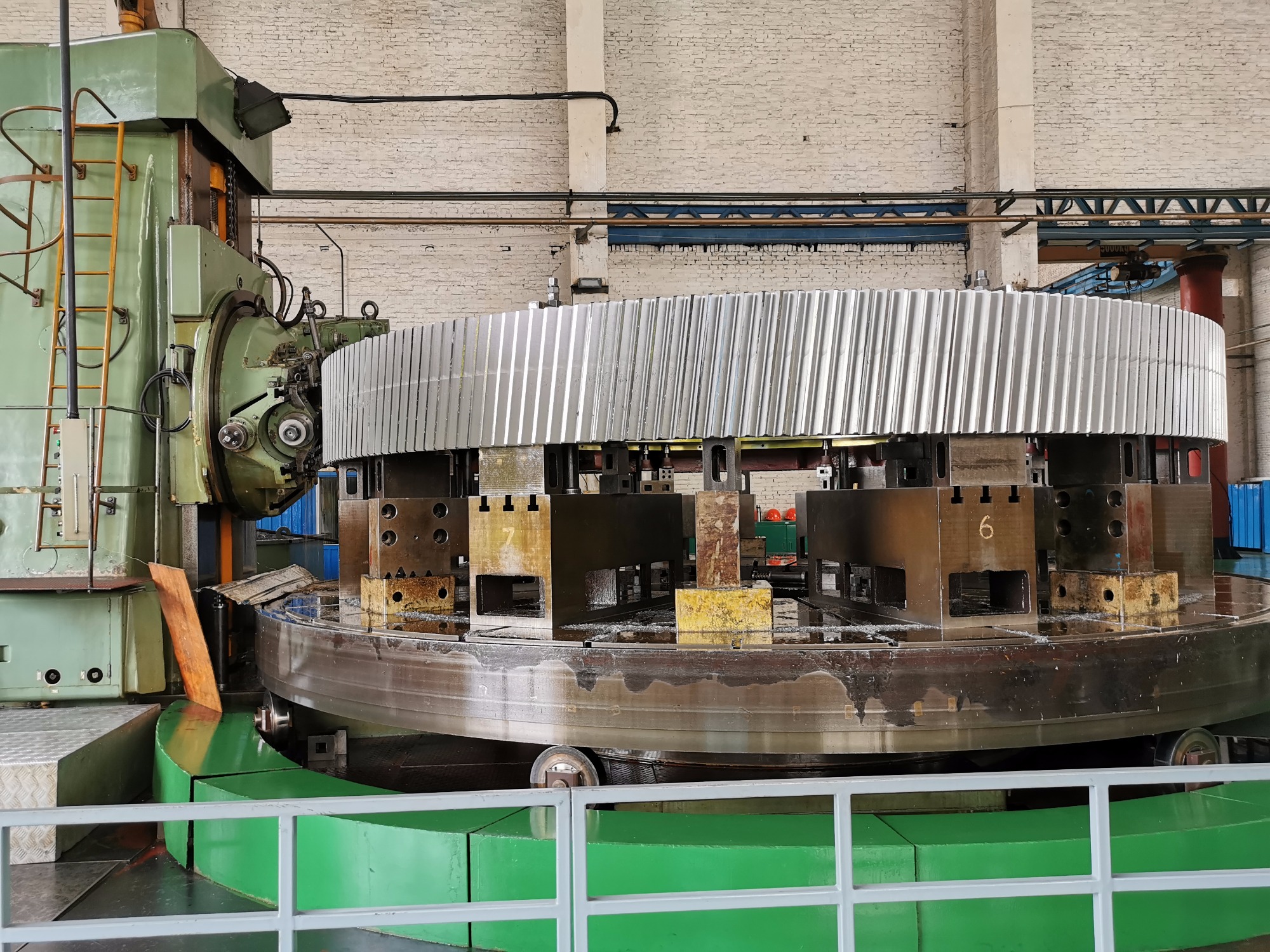

3.Gear Grinding

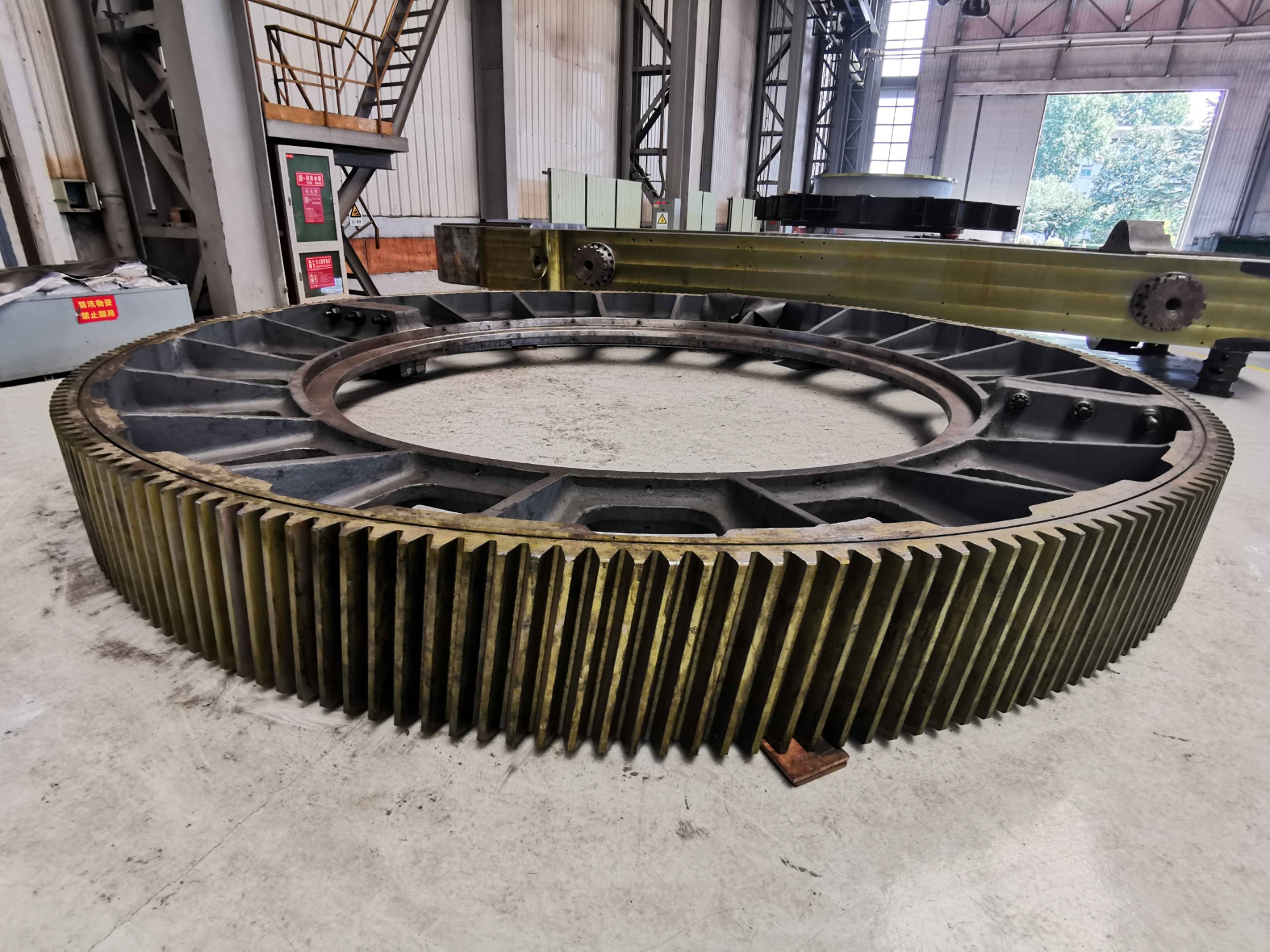

4.SAG Mill Girth Gear-1

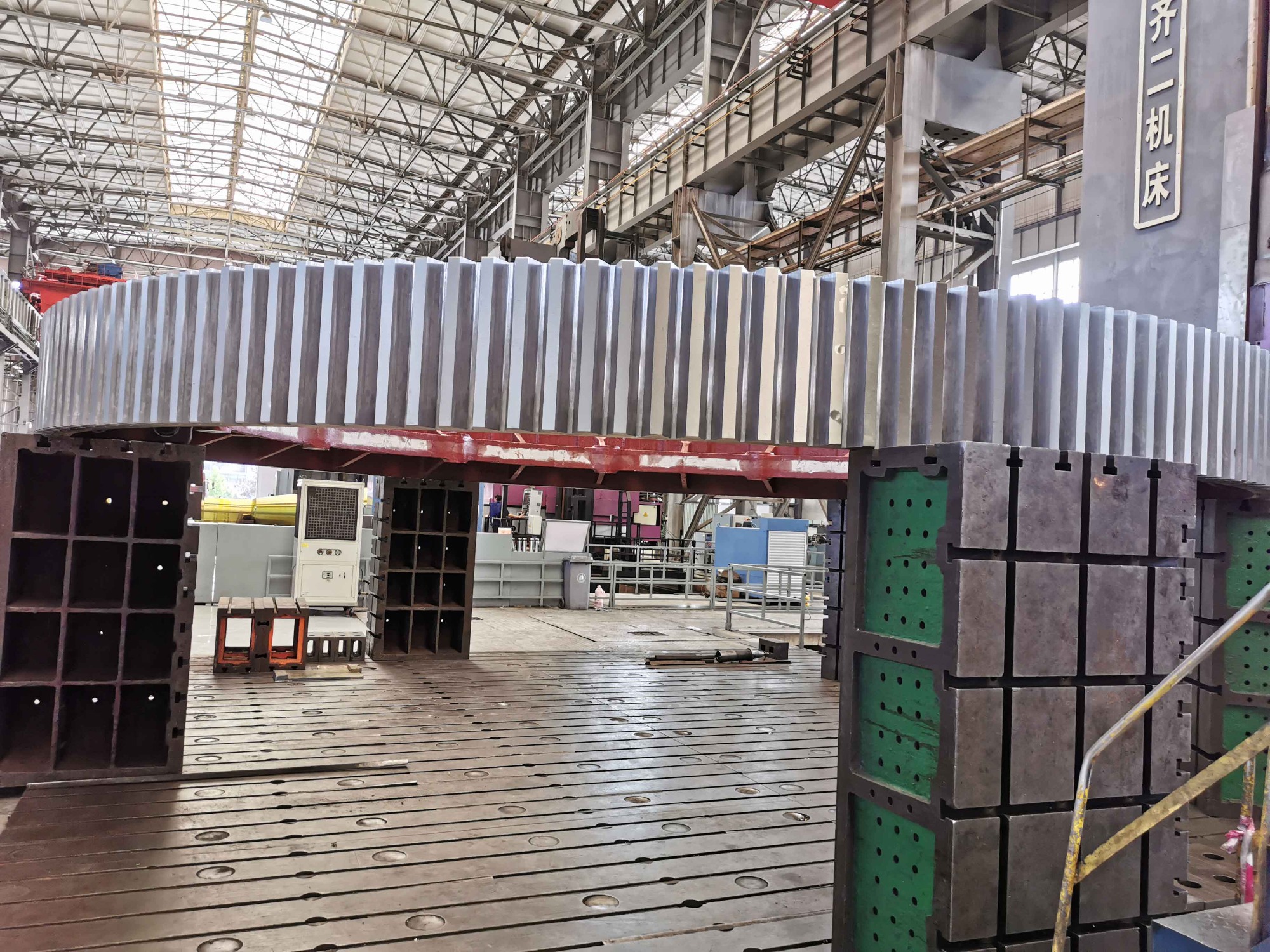

5.SAG Mill Girth Gear-2
 6.Cement Mill Girth Gear
