Mill Girth Gear Testing Accuracy

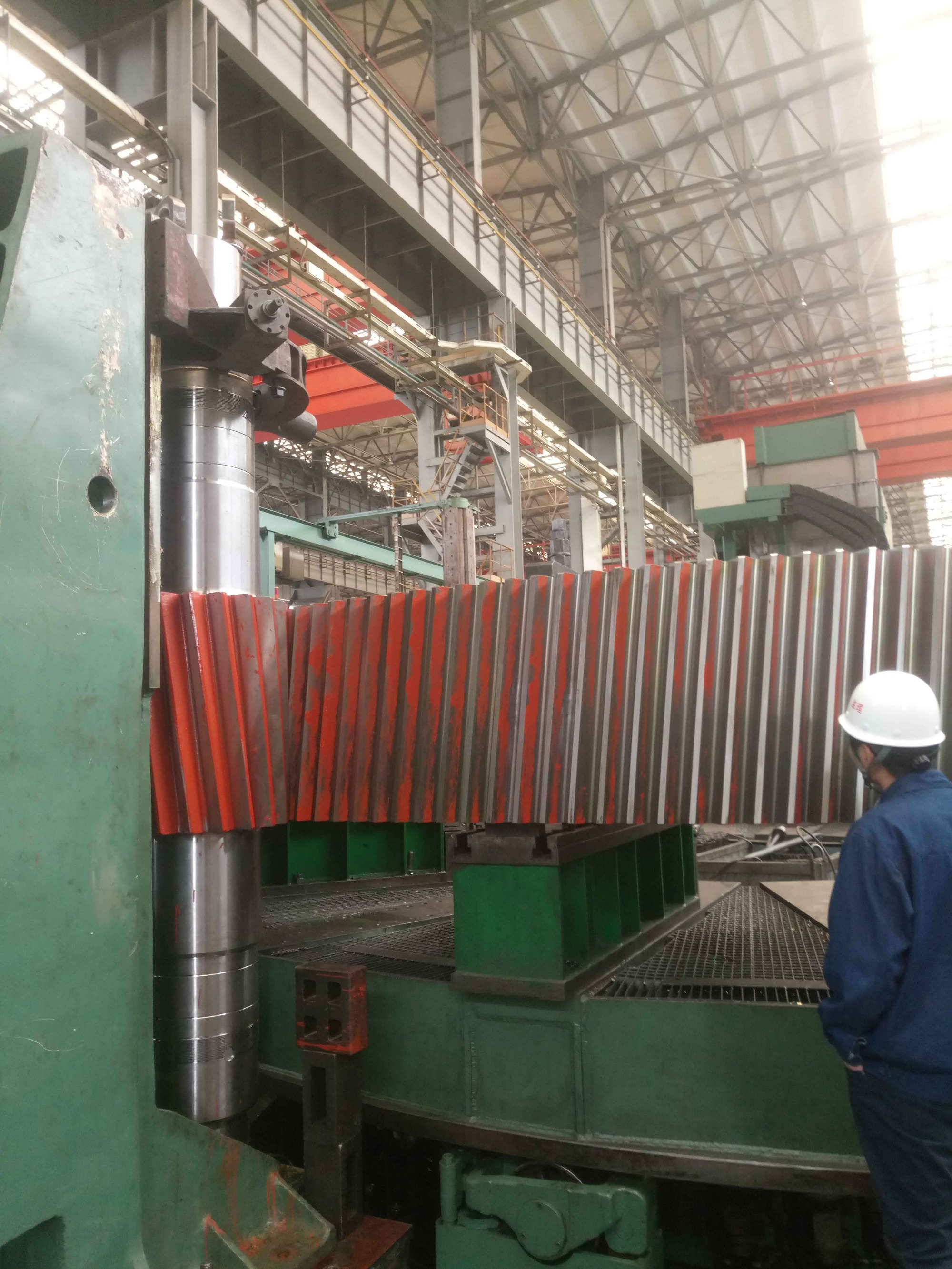

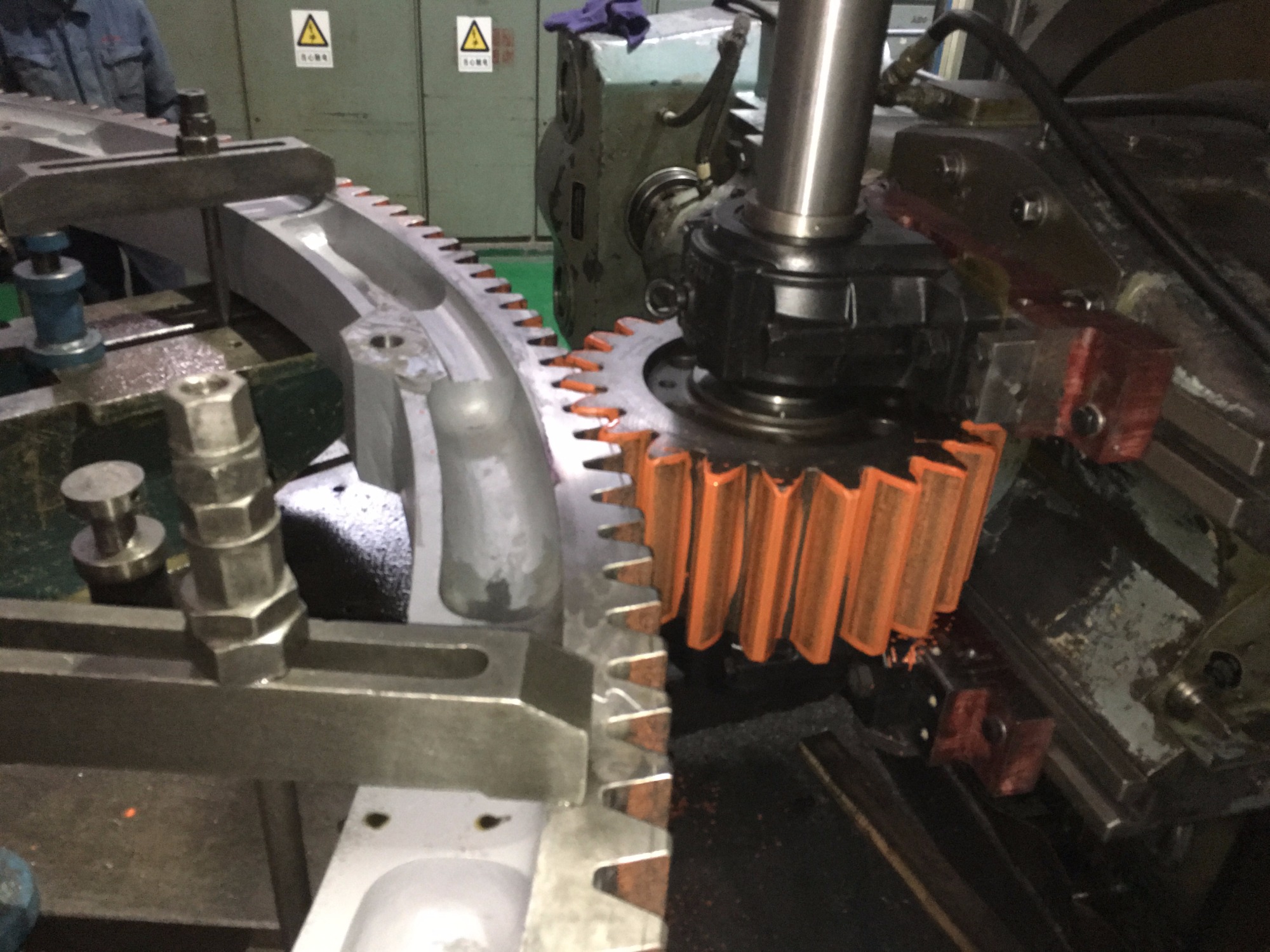

1.Detecting the accuracy of Girth Gear based on Gear-1 2.Detecting the accuracy of Girth Gear based on Gear-2

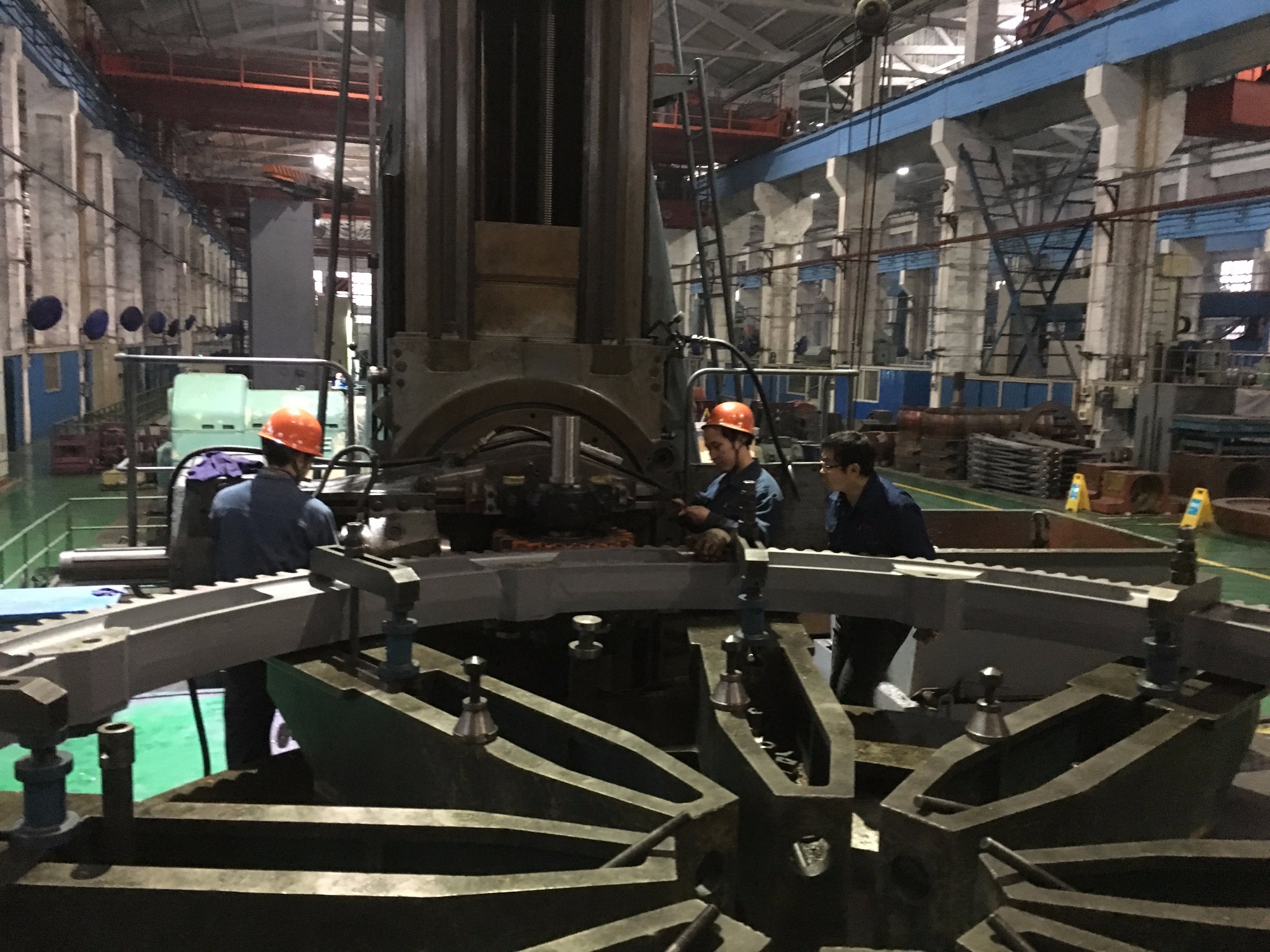

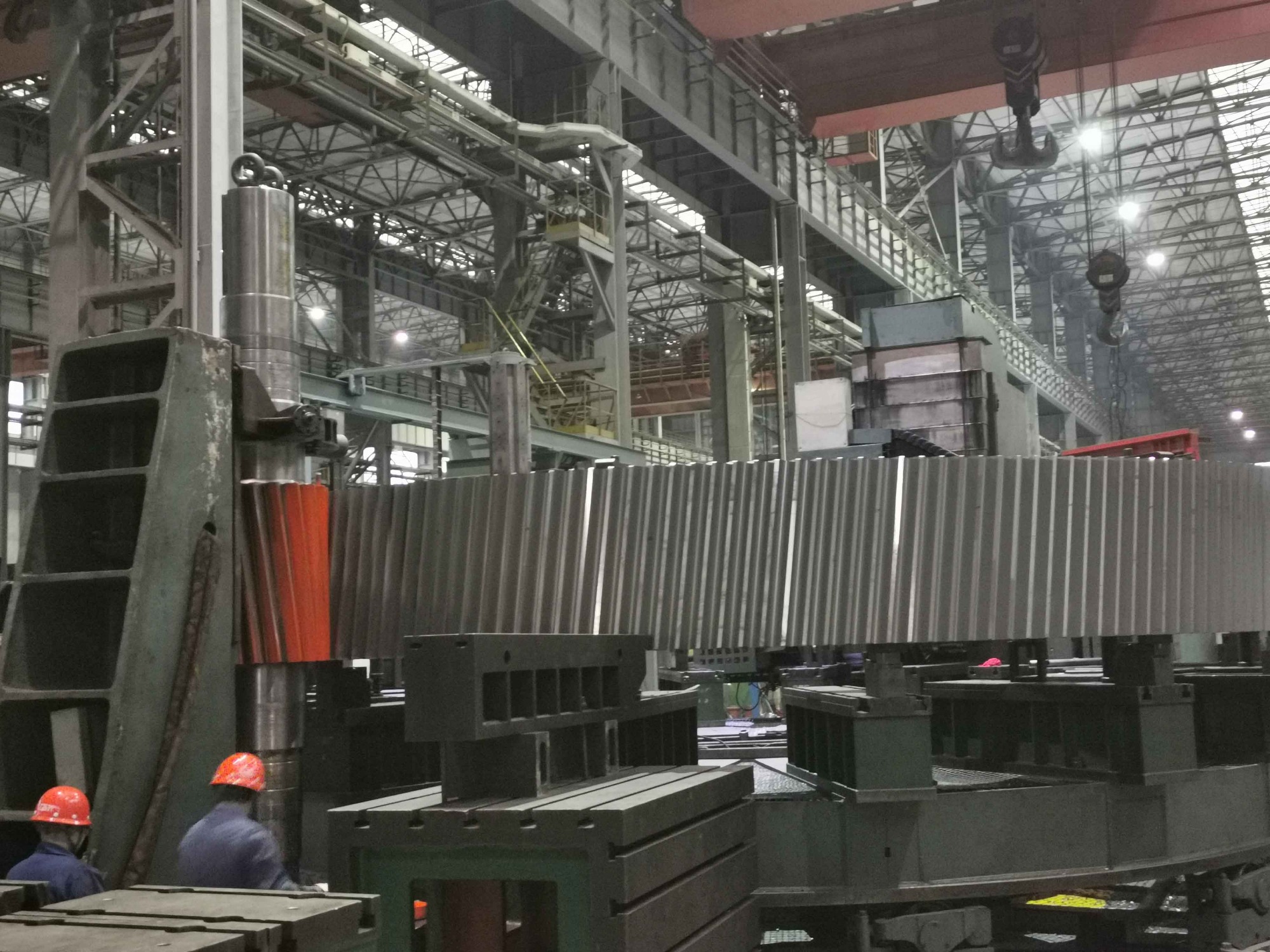

3.Detecting the accuracy of Girth Gear based on Gear-3 4.Detecting the accuracy of Girth Gear based on Gear-4


Testing The Accuracy Of Girth Gears Based On The Gear Shaft

After machine finishing the girth gear, in addition to routine inspection, we also need to carry out the rolling test of girth gear and pinion on the lathe. Taking the qualified high-precision pinion (Q12 level, gear grinding )as standard, check the meshing accuracy of the girth gear and pinion and modify them on the lathe to meet the design requirements fully and guarantee on-site installation requirements.
